Form Floor (mm)
|
|
|
|
|
| Model | AF-20 | AF-20 24 Type | AF-20 30 Type | AF-20 36 Type |
| Cutting Angle | +45° ~ 0° ~ -45° | +45° ~ 0° ~ -45° | +45° ~ 0° ~ -45° | +45° ~ 0° ~ -45° |
| Sawblade Sizes | 20" x 1" bore | 24" x 1" bore | 30" x 50 mm bore | 36" x 50 mm bore |
| Spindle Speed (R.P.M.) | 3000 | 2000 | 1500 | 1200 |
| Motor (Hp) | 7.5 | 7.5 | 10 | 10 |
| Air Pressure (kgs/cm²) | 4 ~ 6 | 4 ~ 6 | 4 ~ 6 | 4 ~ 6 |
| Table Area (mm) | 920 x 650 | 1140 x 750 | 1327 x 640 | 1500 x 770 |
| Table Height Form Floor (mm) |
875 | 920 | 1070 | 1220 |
| Machine Dim. (mm) | 1200 x 1090 x 1780 | 1480 x 1350 x 2100 | 1660 x 1400 x 2210 | 1770 x 1580 x 2520 |
| Packing Dim. (mm) | 1320 x 1210 x 1980 | 1600 x 1470 x 2260 | 1780 x 1520 x 2300 | 1900 x 1700 x 2230 |
| Net / Gross Weight (kgs) | 500 / 610 | 800 / 920 | 1300 / 1500 | 1800 / 2300 |

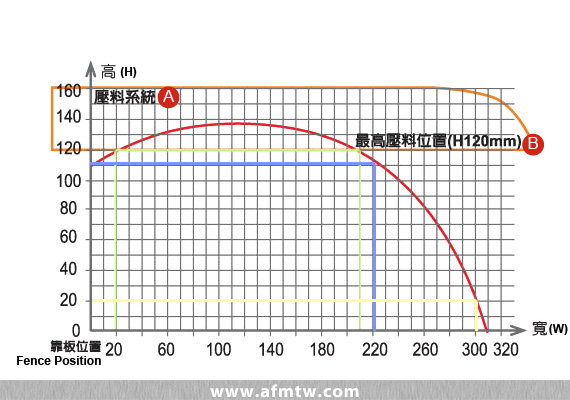

| Cutting Capacity Chart |
|
| ||
| *All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. | ||||
