Metal sheet grinding polishing machines

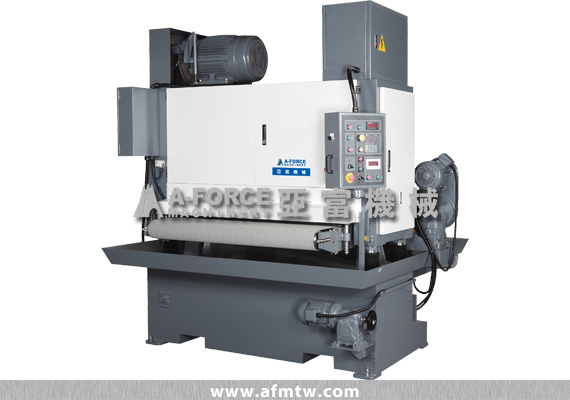

AF-25 &AF-37 & AF-52

- Grinding Head Configuration
- Coolant system
- Variable Feed Speed
- Coolant absorbtion Device (Optional Accessories for AF-25 and AF-37 Series)

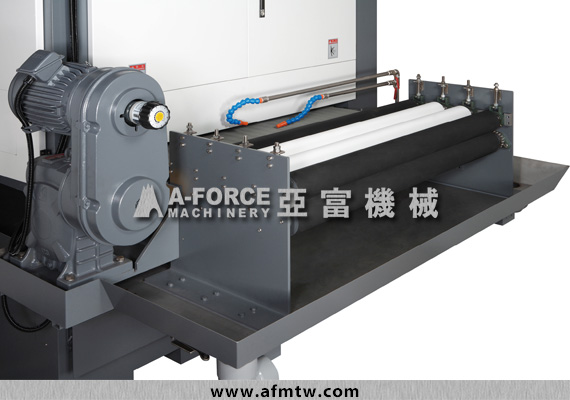

There are two flushing nozzles and coolant absorbing rollers at the outfeed end of the conveyor table. Once the steel plate is ground, dust on the steel plate surface will be washed down, and then the coolant absorbing rollers will completely absorb the water.
- Powered Elevation Of Grinding Head




Model AF-25 AF-37 AF-52
Working Width (mm) 600 900 1300
Working Thickness (mm) 0.8 ~ 10 0.8 ~ 10 0.8 ~ 10

Minimum Length of Workplace (mm)

 400 400 400

Sanding Belt Specifications (inch)

 25 x 75 37 x 75 52 x 75

Feeding Speed (M/min)

 3.5 ~ 9 3.5 ~ 9 3.5 ~ 9
Sanding Belt Motor 20 HP x 1 25 HP x 1 30 HP x 1
Feeding Motor 0.5 HP x 1 1 HP x 1 2 HP x 1
Elevation Motor 0.5 HP x 1 0.5 HP x 1 0.5 HP x 1

Pump Motor

 0.5 HP x 1 1 HP x 1 1 HP x 1
Water Tank Capacity (L) 300 450 600
Machine Dim. (mm) 2110 x 1550 x 2500 2110 x 1850 x 2500 2110 x 2250 x 2500
Machine Weight (Kgs) 2800 3400 4000
*All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice.

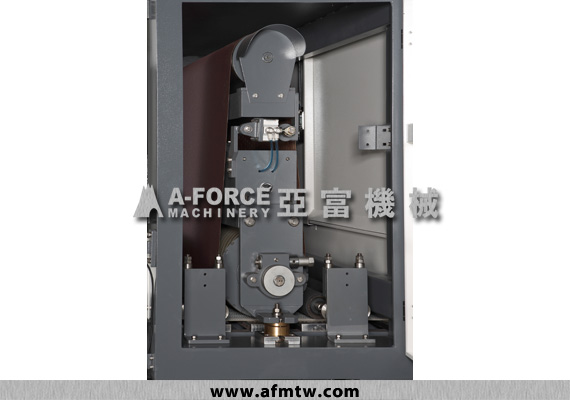

Grinding Head Configuration
. The sanding belt oscilation is actuated by air cylinder.
. The sanding belt tracking is controlled by photo-electric sensor.
. In case mistrack occurs, the machine stops automatically.
. In case of sanding belt breakage, the machine stops automatically.

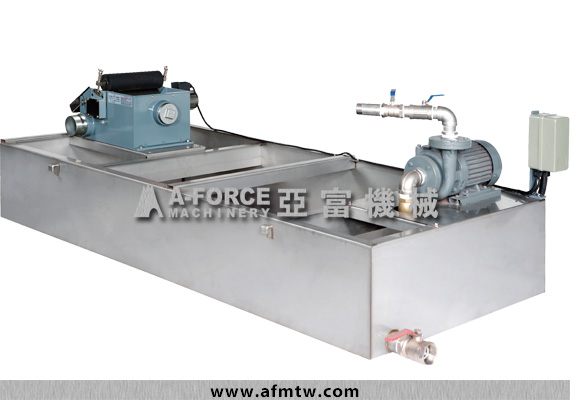

Magnet-Type Filters
The coolant system is equipped with a powerful suction pump for sufficient cool flow, which assures an excellent grinding effect and long service life of sanding belt.

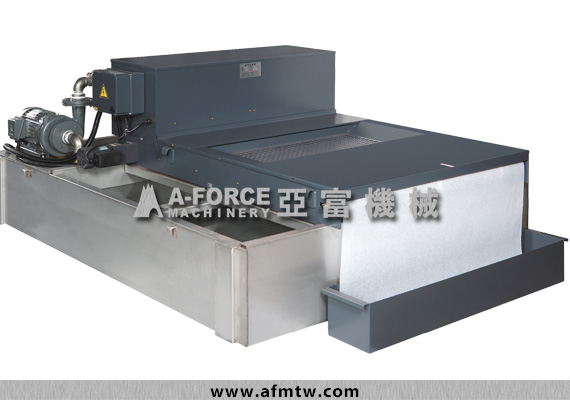

Paper-Type Filters
The coolant system is equipped with a powerful suction pump for sufficient cool flow, which assures an excellent grinding effect and long service life of sanding belt.

Variable Feed Speed
The machine employs a belt-type variable speed mechanism. Variable feed speed range is from 3.5~9 M/min, making the machine suitable foe grinding various steel plate materials.

Powered Elevation Of Grinding Head

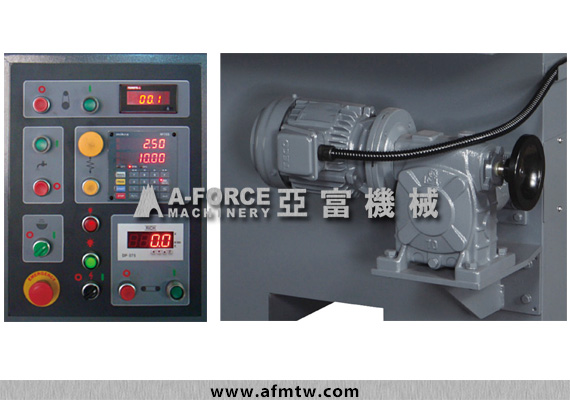

. The grinding head elevaton is powered by a motor, providing convenient adjustment for grinding head positioning.
. A micrometric adjustment handwheel is provided on the motor shaft accurate adjustment of grinding head position.
